Ⅰ 產品簡介
名稱：超高頻讀寫器陶瓷天線ZJTCTX-2DBI
超高頻讀寫器陶瓷天線ZJTCTX-2DBI在多個領域都有廣泛應用，包括但不限于物流管理、門禁系統、防偽技術以及生產過程控制等無線射頻識別（RFID）系統。
Ⅱ 主要技術參數
| 天線（Antenna） | ||
| 1 | Antenna model(天線規格) | 7060D（60mm*60mm*5mm） |
| 2 | Frequency Range(頻率范圍) | 922MHz±2MHz |
| 3 | V.S.W.R（駐波比） | 1.5 MAX |
| 4 | Band With@10dB(10dB帶寬) | 5.5 MHz MIN |
| 5 | Gain(增益) | 4 dB typ @70mm*70mm groundplane |
| 6 | Impendence（阻抗） | 50Ω |
| 7 | Polarization（極化方式） | RHCP |
| 材料（Material） | ||
| No | Part Name | SPEC |
| 1 | Antenna | Dielectric Ceramics |
| 2 | PCB | FR4 |
| 3 | Bridge(電橋) | HCO900A03 |
| 4 | Resistance（電阻） | 100Ω(0402) |
| 5 | RF Cable （線材） | RG316 |
| L=20.5cm | ||
| 6 | RF Connector（接頭） | SMA公頭內針 |
| 環境條件（Environment Condition） | ||
| 1 | Working Temp（工作溫度） | -40℃～+85℃, 10%～95% RH |
| 2 | Storage Temp（貯存溫度） | -55℃～+100℃, 10%～95% RH |
| 3 | Vibration（震動） | Sine sweep @1.5mmAM 10~55Hz each Axis |
Ⅲ 測試圖表（Testing Curve）
天線阻抗及駐波比（Patch Simth& VSWR）

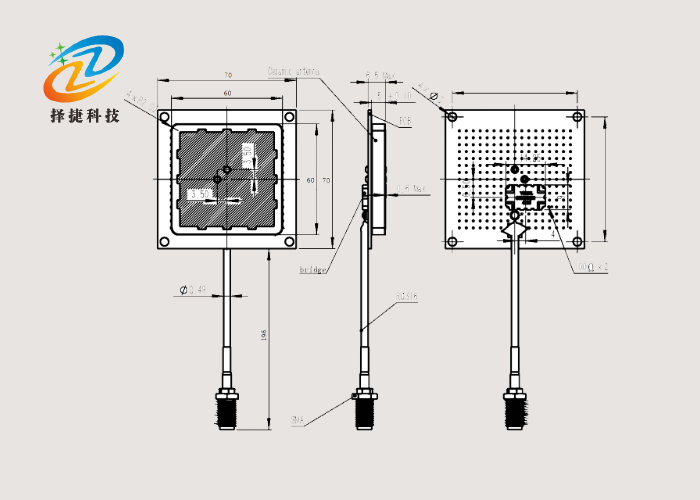

Ⅳ 結構圖（Structure）
Ⅴ 注意事項（Note）
1、This product specification guarantees the quality of our product as a single unit. Please make sure that your
product is evaluated and confirmed against your specifications when our product is mounted to your product.
2、The product will get free warranty for three months since the date of purchase users operate in the correct
way; users will have to pay cost of the materials and maintaining fee out of the condition.
3、Electrostatic sensitive device.Observe precautions for handling.
product is evaluated and confirmed against your specifications when our product is mounted to your product.
2、The product will get free warranty for three months since the date of purchase users operate in the correct
way; users will have to pay cost of the materials and maintaining fee out of the condition.
3、Electrostatic sensitive device.Observe precautions for handling.
Ⅵ 產品實拍

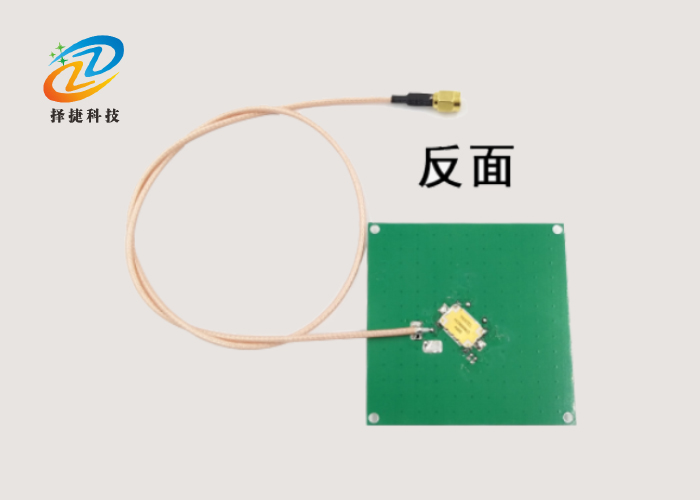

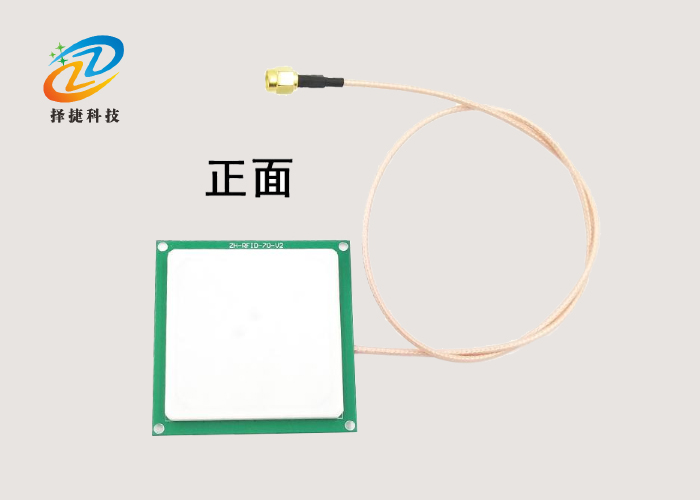

實拍展示
